Product Parameters


Technical Parameter of 3.5T Small Tracked Excavator
Engine
Engine PowerKubota D170318.5KW/2200rpm
Max.  Turque97.4NLm/1500RPM
TypeIn-line, water cooled, Mechanical pump
Displacement1.647L
No. of cylinder4
Main Performance
Swing   Speedrmin0-11
Traveling Speed(high/low)km/H4.4/2.4km/h
Grade ability
58%
Max. Bucket Digging ForcekN30.4
Arm Dioging ForoekN18.2
Ground PressureKpa32
Hydraulic system pressureMpa22.5
Machine WeightKG3810
Boam LengthMm2535
Arm LengthMm1400
Fuel Tank capacityL42
Hydraulic Tank capacityL48.5
Engine oll capacityL7
Carrier roller(each side)
1
Supporting roller(each side)
4
Overall Dimensions
Overall Lengthmm4915
Overall Widthmm1720
Overall Heightmm2525
Mini Ground clearancemm295
Track widthmm300
Axie base (Track length on ground)mm1670
Length of trackmm2154
Track GaugeMm1420
Swing radiusMm860
Swing radius at frontMm2538
Height of bladeMm350
Operation parameters
Bucket Capacity0.12
Max. Digging Radiusmm5480
Max. Digging Depthmm3208
Max. Digging Heightmm4800
Max.  Dumping Heightmm3406
Max. digging depthmm3208

Product Detail

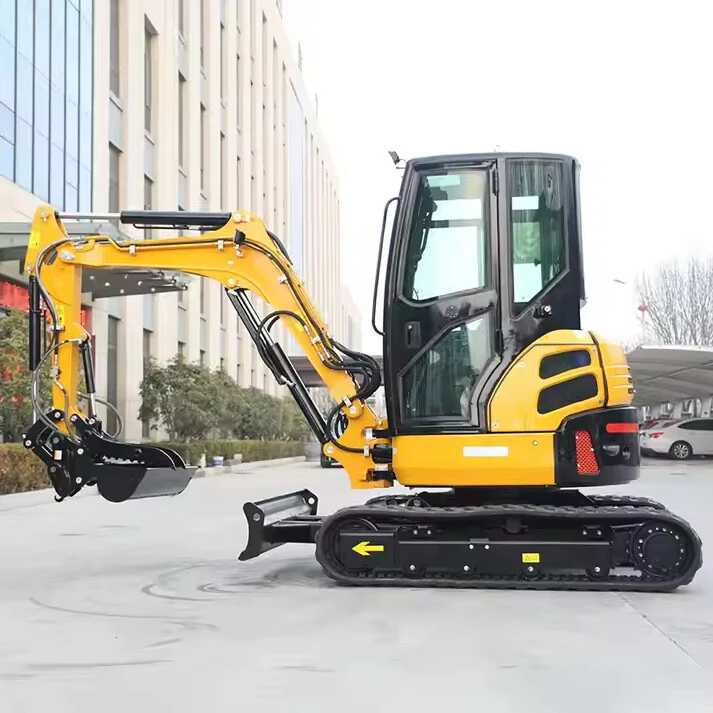

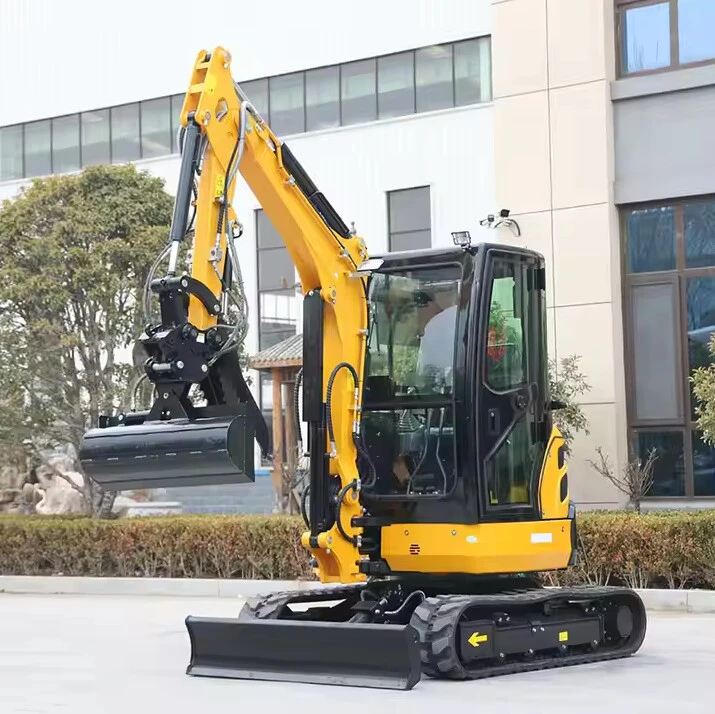

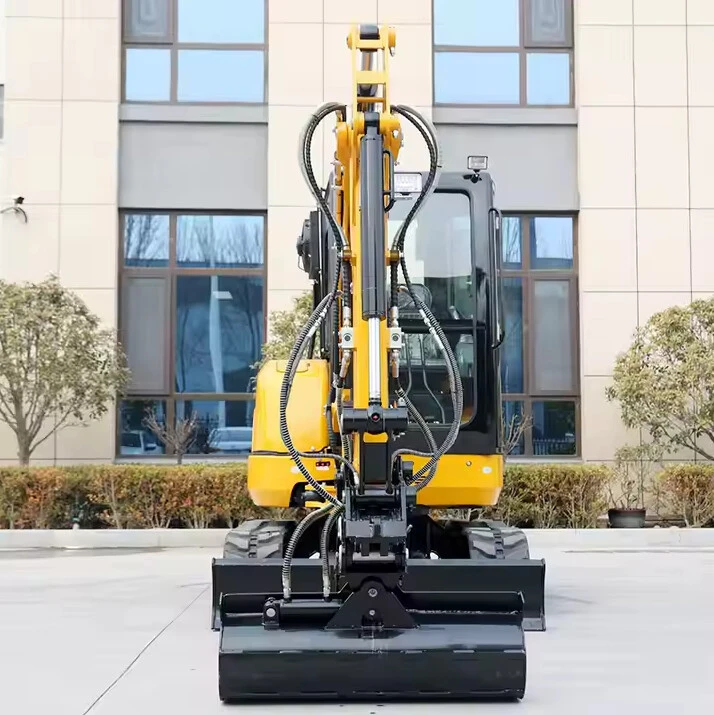

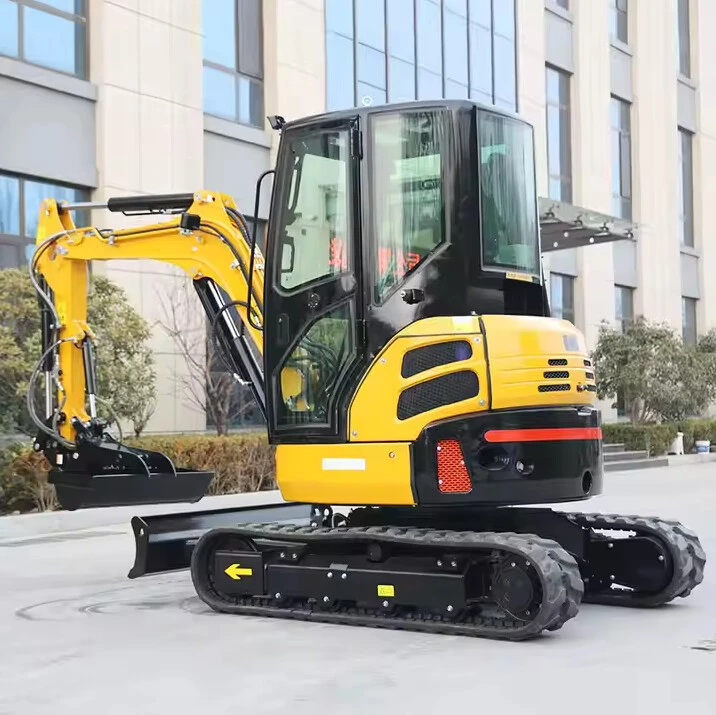

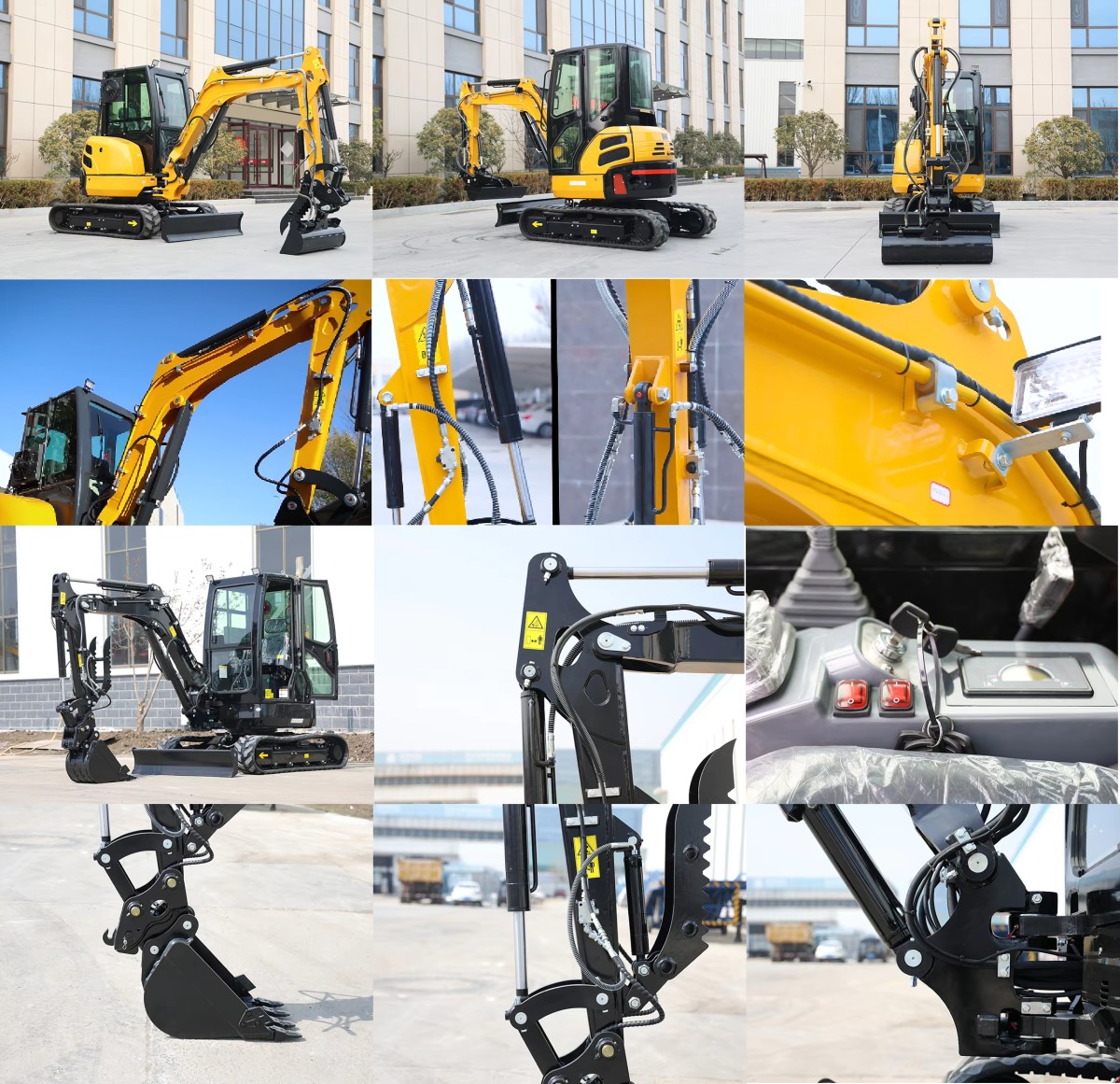

3.5 Ton Small Tracked Excavator With Clamp Attachments

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
