Product Parameters


Dimension(L*W*H)10800*2500*3700mm(40cbm)
Main frameHeavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by
automotive arc-submerge process
MaterialCarbon Steel
No. of axle3
Capacity(CBM)40CBM (custom-built)
Tare weight(kgs)10,000kgs
Diesel EngineWeiChai Huafeng 4100 40KW
Air compressorWBF-10/2
KingpinJOST brand bolt-in/welded type 3.5”/2”
Landing gearJOST brand two-speed manual operation 19”
Tire size11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
Rim size8.25*22.5、9.00*22.5、11.75*22.5
AxleOriginal BPW-12T/ FUWA-13T
SuspensionGermany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake systemDual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric systemOne unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one
set of 6-pin standard cable
Container locks12(for 1x20GP,2X20GP,1X40HQ)
PaintingS.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
AccessoryOne tool box; one set of standard tool

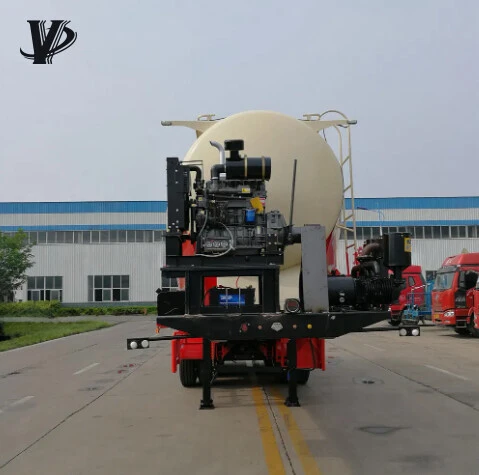

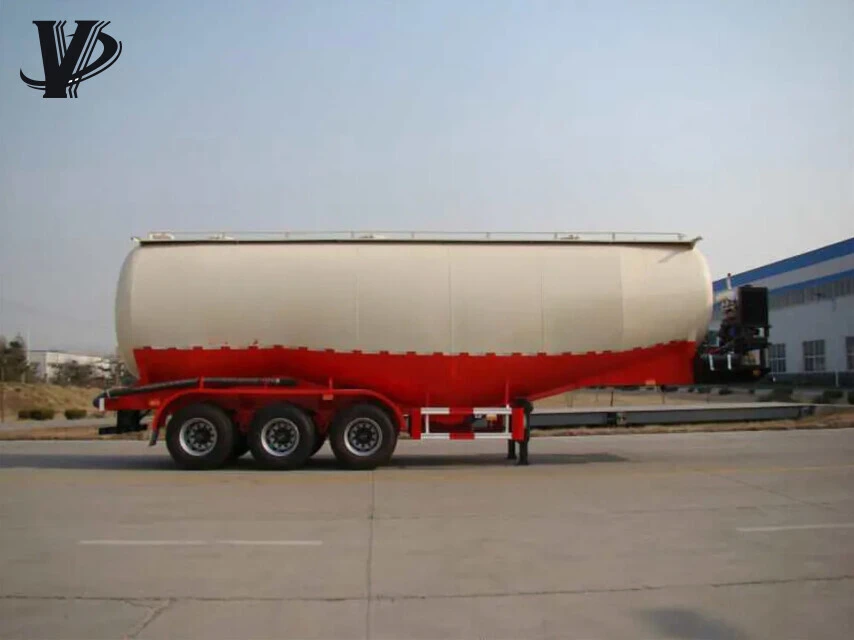

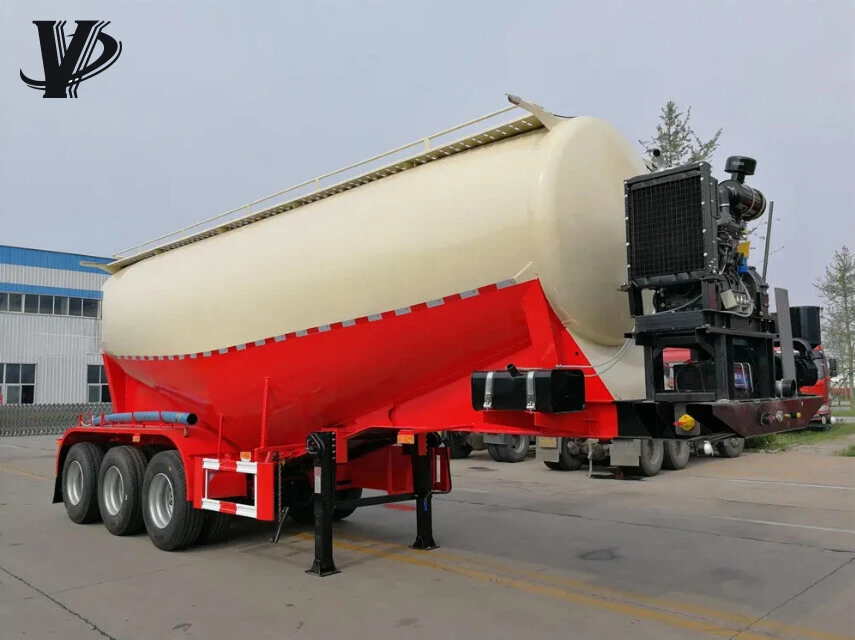

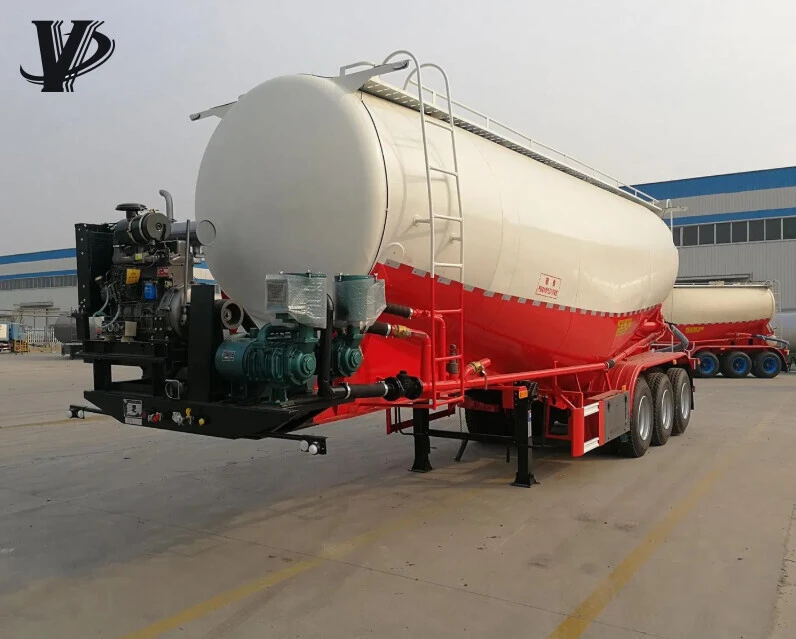

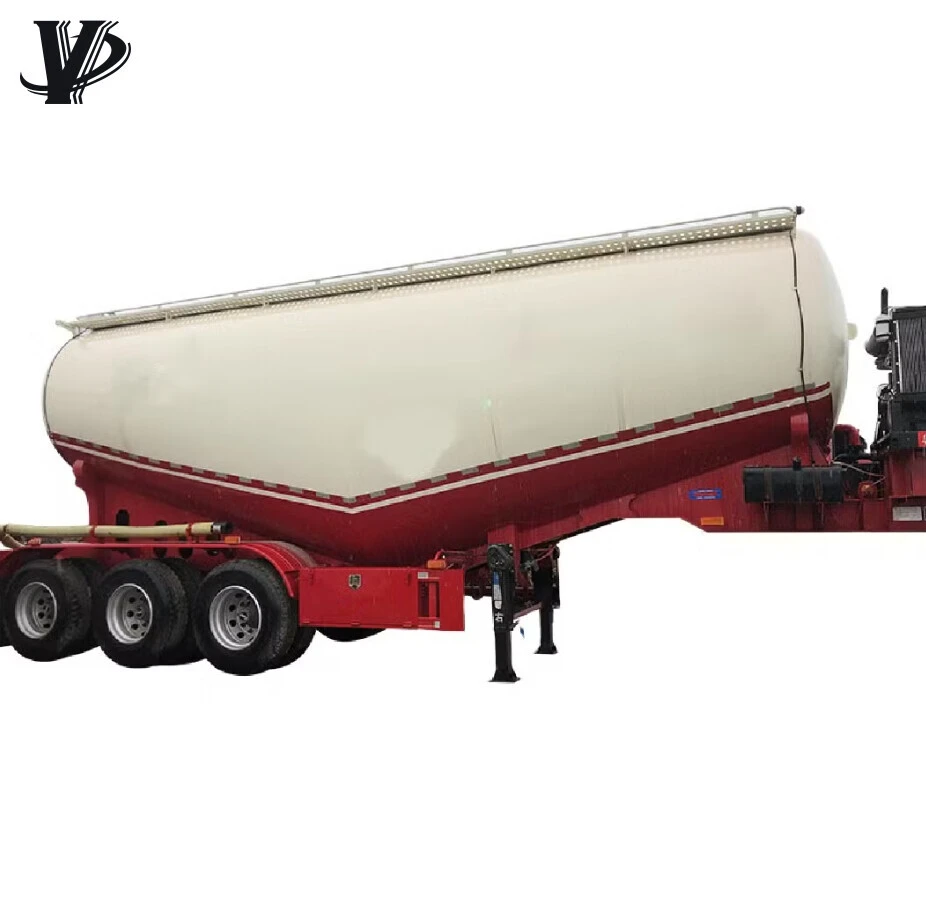

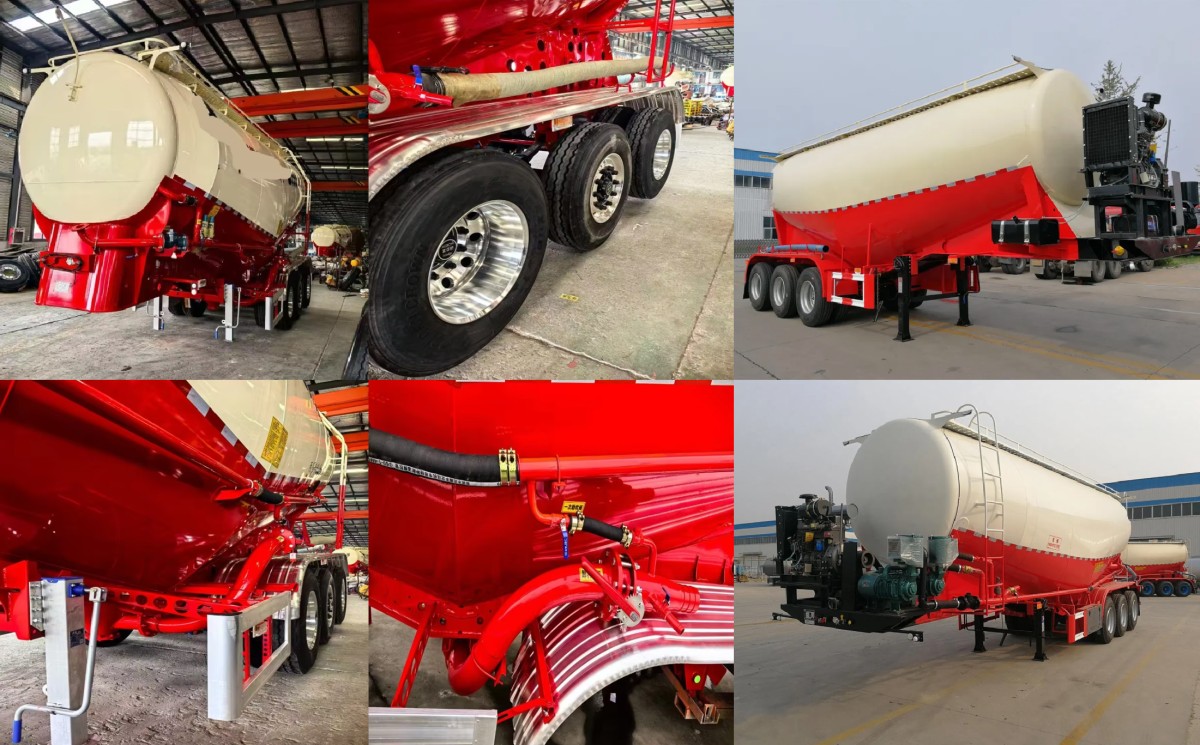

Product Detail

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
