Product Parameters

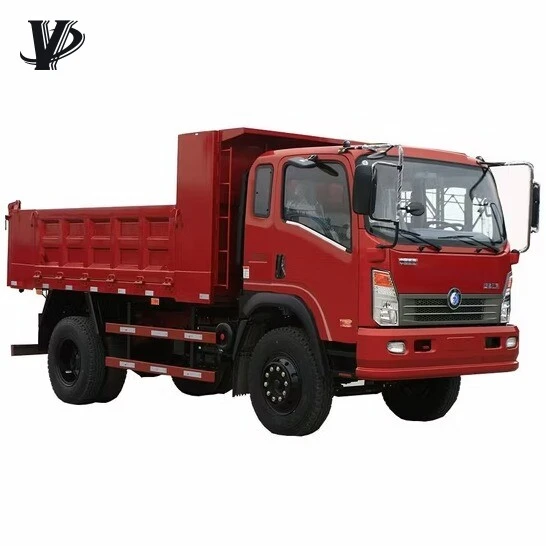

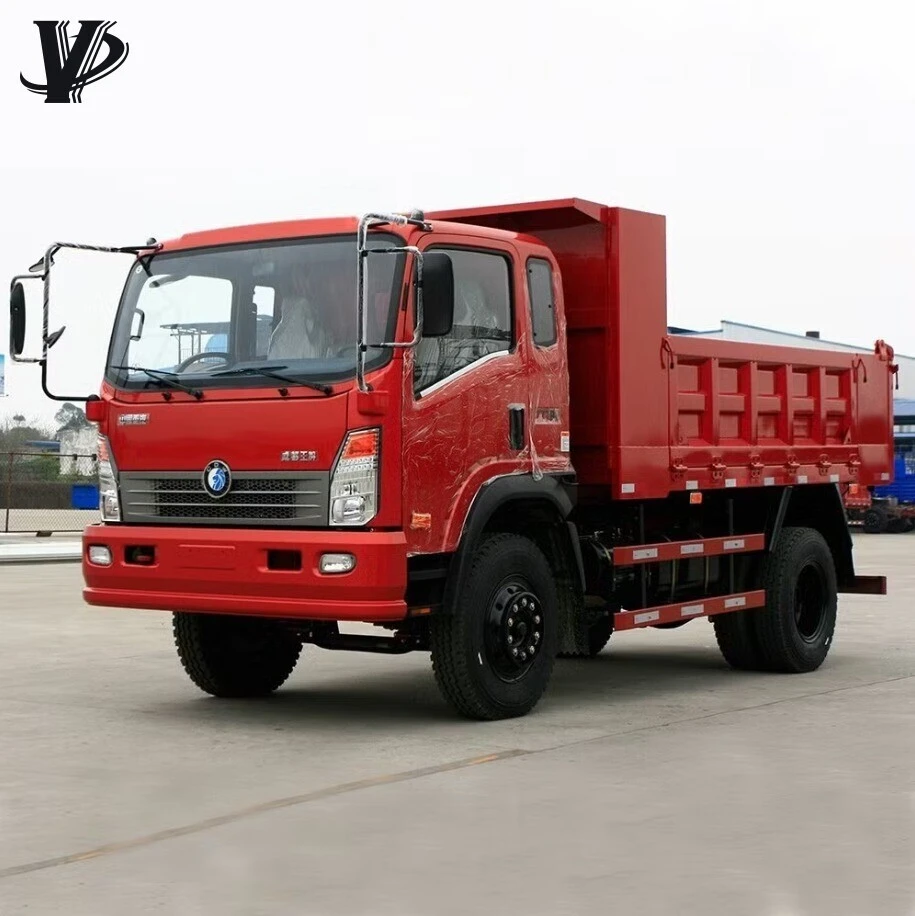

SINOTRUK CDW 737B3F 10ton Dump Truck
ModelCDW 737B3F Dump Truck
Cab and Panel1760 Extended cabin, without A/C, Radio FM with USB
EngineType:  YN38PE-1
Type:4 cylinder, direct injection, water cooling,4 stroke,Euro II
Max horse power: 115hp
Rated revolution: 2600 rpm
Max. Torque: 520 N.m at 1300~1700 r/min
Displacement: 4.257 L
Cylinder bore×route: 110×112 mm
GearboxType: 145F, 5 forward & 1 reverse
Ratio: 11.987,8.973,6.748,4.644,3.805,2.581,1.932,1.453,1,0.819,
9.989(R1),2.151(R2)
AxleFront type:  1058S1X
Rear axle type:  1080N(i=6.833)
Rear axle ratio: 6.833
FrameFrame: 280/10,ladder shaped frame,280mm height,800mmwideth,10mm thickness
Front overhang: 1061-Ⅱ++,11pcs,telescopic shock absorber
Rear overhang: 153+,11pcs main spring and 8pcs assistance spring
Fuel tank:Iron steel,Volume 150L
SteeringType:Steering wheel
Steering diameter:450mm
Max. cycles:5.5
Brake systemMotor brake:Double Circuit air brake
Parking brake: Brake
Auxiliary brake: Exhausted Brake
Tyre7.50-16×7, rear axle with double tires
ElectronicVoltage: 24V,cathode ground connection
DimensionWheelbase: 3650 mm
Wheeltrack: 1750 mm/ 1725mm
Overhang: 1260 mm / 1490 mm
Approaching angle/Departure angle: 24 / 23
Inner dimension:  3600×1900×600 mm
Total dimention:  5870×2060×2650 mm
LiftingSingle cylinder 180mm×660mm
WeightRated mass:4800Kg
Load capacity:10000 kg
Total mass:14800 kg
Front axle load capacity:4590 kg
Rear axle load capacity:6905 kg
