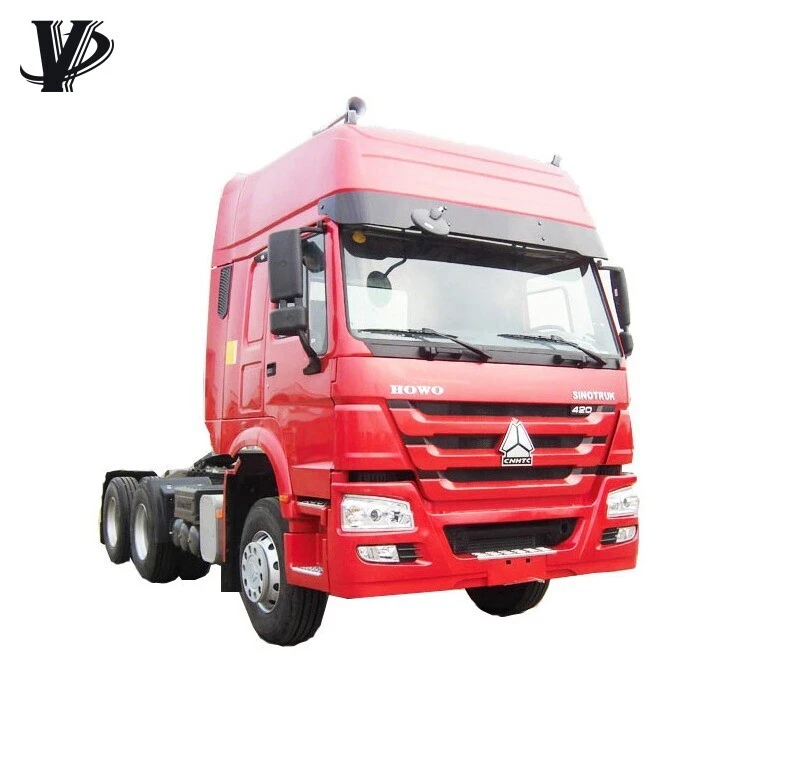

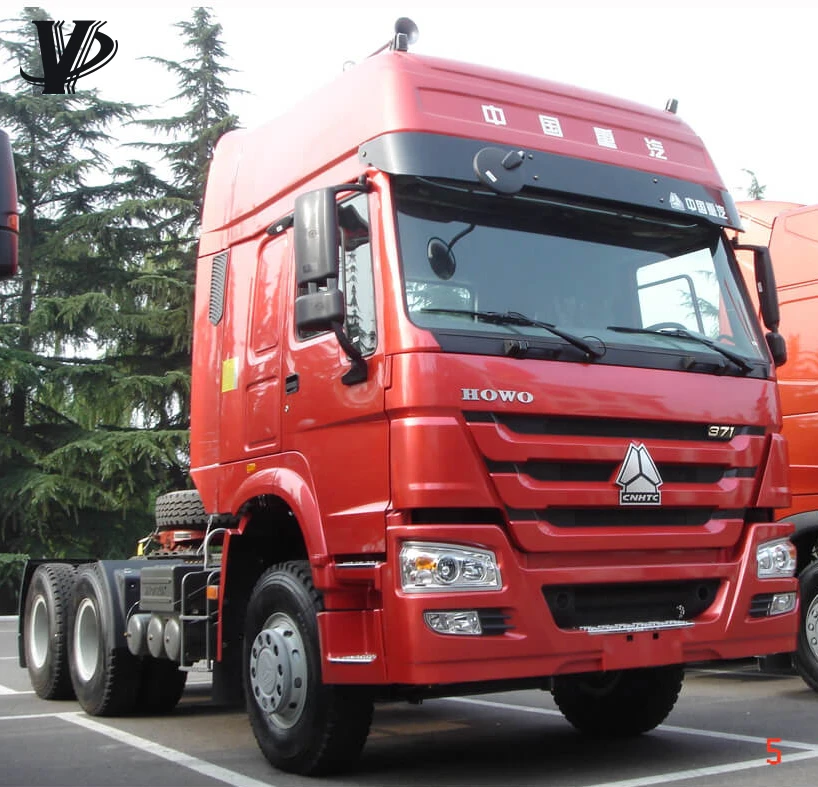

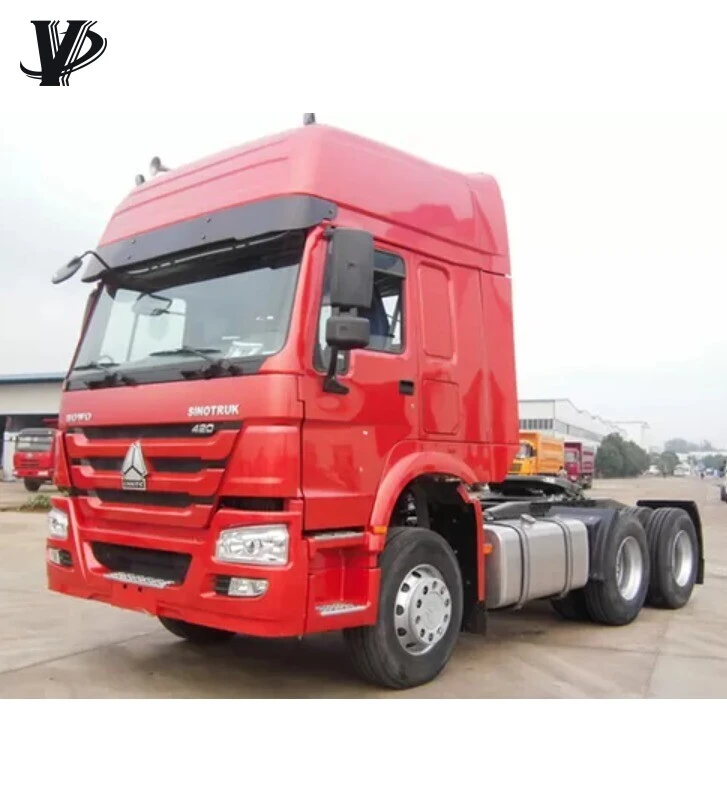

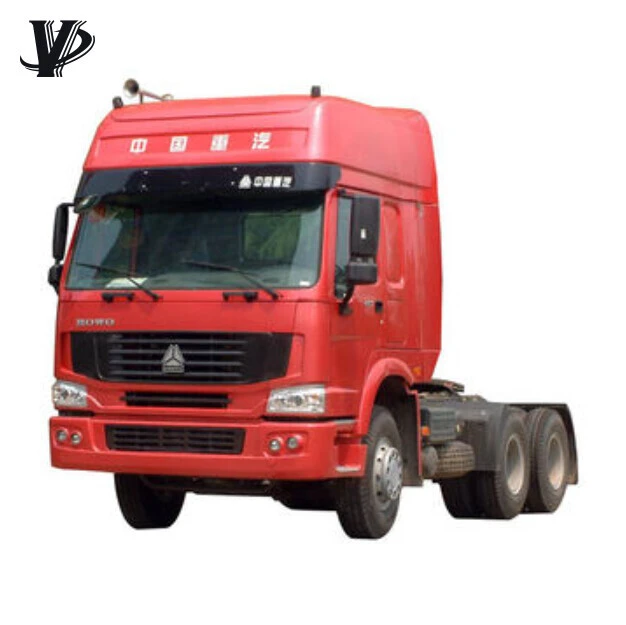

Howo 6x4 Tractor Head Truck
Email：sales@sdydtrailer.com
Phone：+8619006356480
WhatsApp：+8619006356480
Contact Us

Product Parameters


VEHICLE SPECIFICATIONDESCRIPTION
Truck ModelZZ4257N3247V
Type of VehicleTRACTOR TRUCK
Truck BrandSINOTRUK—HOWO
Driving PositionLeft hand Driving
Fuel tanker capacity400L
The Total Mass40,000kg
Dead Weight8800kg
Max speed102km/h
ColorOptional
Chassis & Add Components
Frame DetailsHigh-Strength U-profile ladder frame with
Section of 300*90*8mm and reinforced
sudfram, all cold riveted cross members.
Dimension(L×W×H)(unloaded)6800x2496x3563mm
Approaching angle/Departure angle16/70
Overhang(front/rear)1500/725mm
Wheel base3225+1350mm
Engine
ModelWD615.47
Power371hp/272kw.2000r/min
EmissionEURO II
Cylinder bore*stroke126*155mm
Displacement9.876L
Typewater-cooled,four strokes,6 cylinders in line, turbocharged, directly injection.
Kind of FuelDiesel
Fuel Consumption30L/100km
Clutch & Gear Box System
Battery2X12V/165Ah
Alternator28V-1500kw
Starter7.5Kw/24V
Brake System
Service brakeDual circuit compressed air brake
Parking brakeSpring energy, compressed air
Operating on rear wheels
Auxiliary brakeEngine exhaust brake
Wheels & Tyres
Type295/80R22.5
MaterialTubeless tires
Quantity10+1 spare
King pin90mm
Cabin
TypeHW76 Standard cabin
Single sleeper with air conditioner, all-steel forward control,55 hydraulically tiltable
To the front,2- arm windscreen wiper system with three speeds, laminated windscreen
With casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable
co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap,
with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn,
with 4-point support fully floating suspension and shock absorbers.

Product Detail

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
