Product Parameters

 Dimension 12.5m×2.5m×1.6m
 The rated load 60-80T
 Bottom Platform 4 mm Checkered Thickness
 Main beam Welding design “I” 260mm side beam , Main beam height 500mm
 Frame beam Top Flange 20mm; Bottom Flange 25mm, Middle Flange 12mm;
 Ramp Mechanical ladder
 Axle 4 axles
 Landing Gear 28T lifting capacity with two speed Jost brand
 King Pin 2.00 or 3.5 inch bolt-in king pin
 Suspension Mechanical suspension
 Leaf spring 90mm(W)*16mm(T)*10 Layer
 Braking System Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve
 Tyre 12r22.5 * 12 pcs
 Accessories One standard tool box
 Spare tire rack One unit

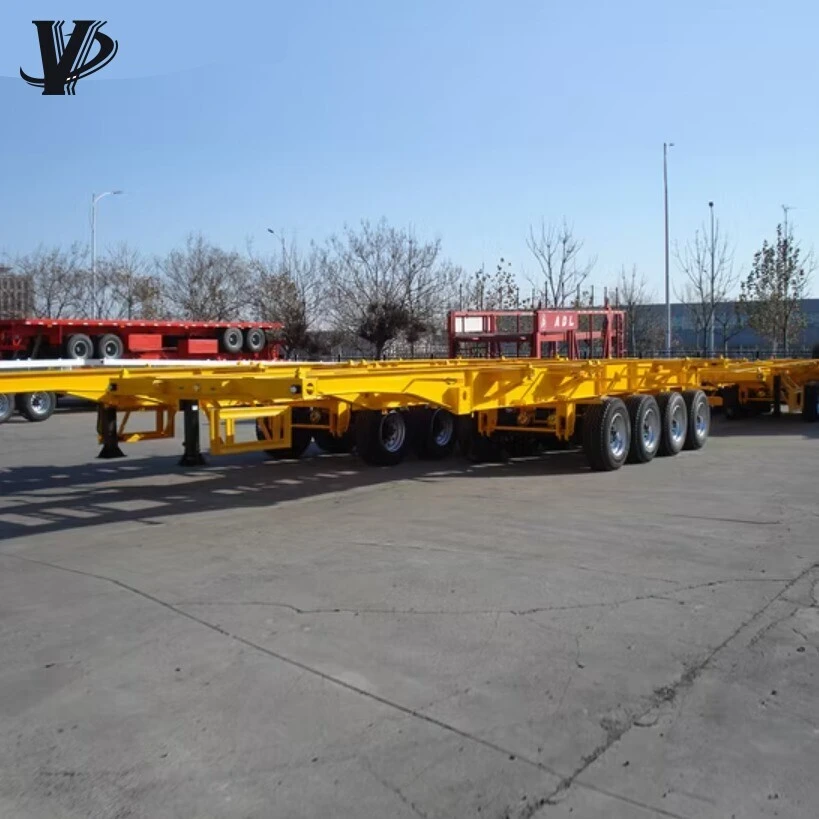

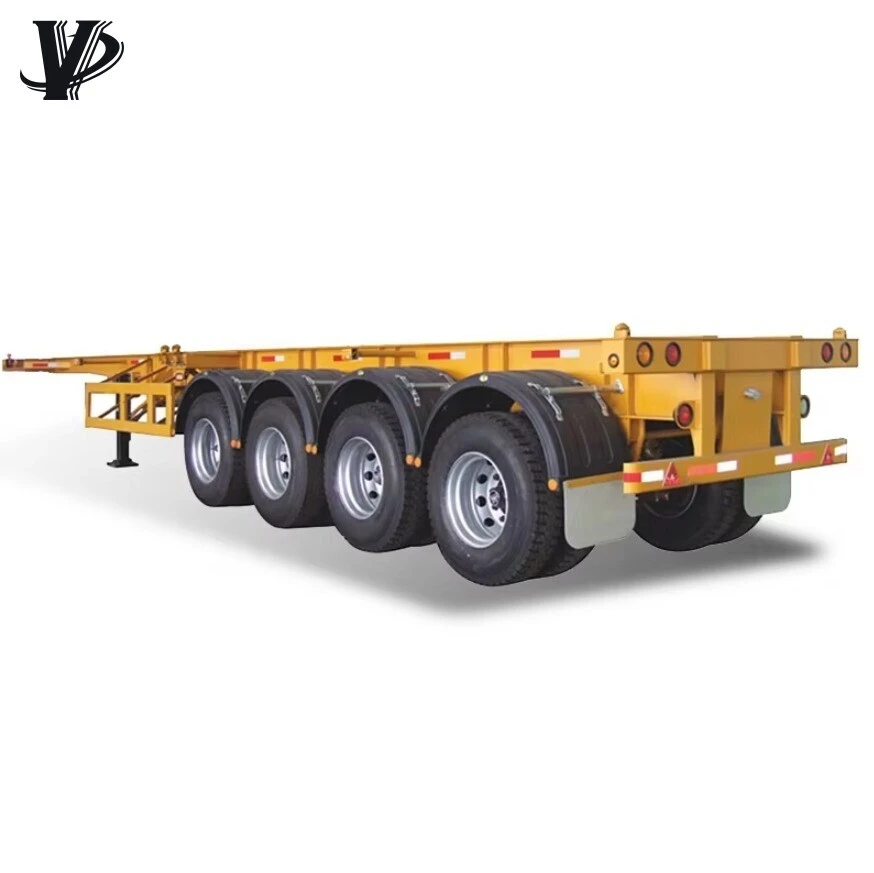

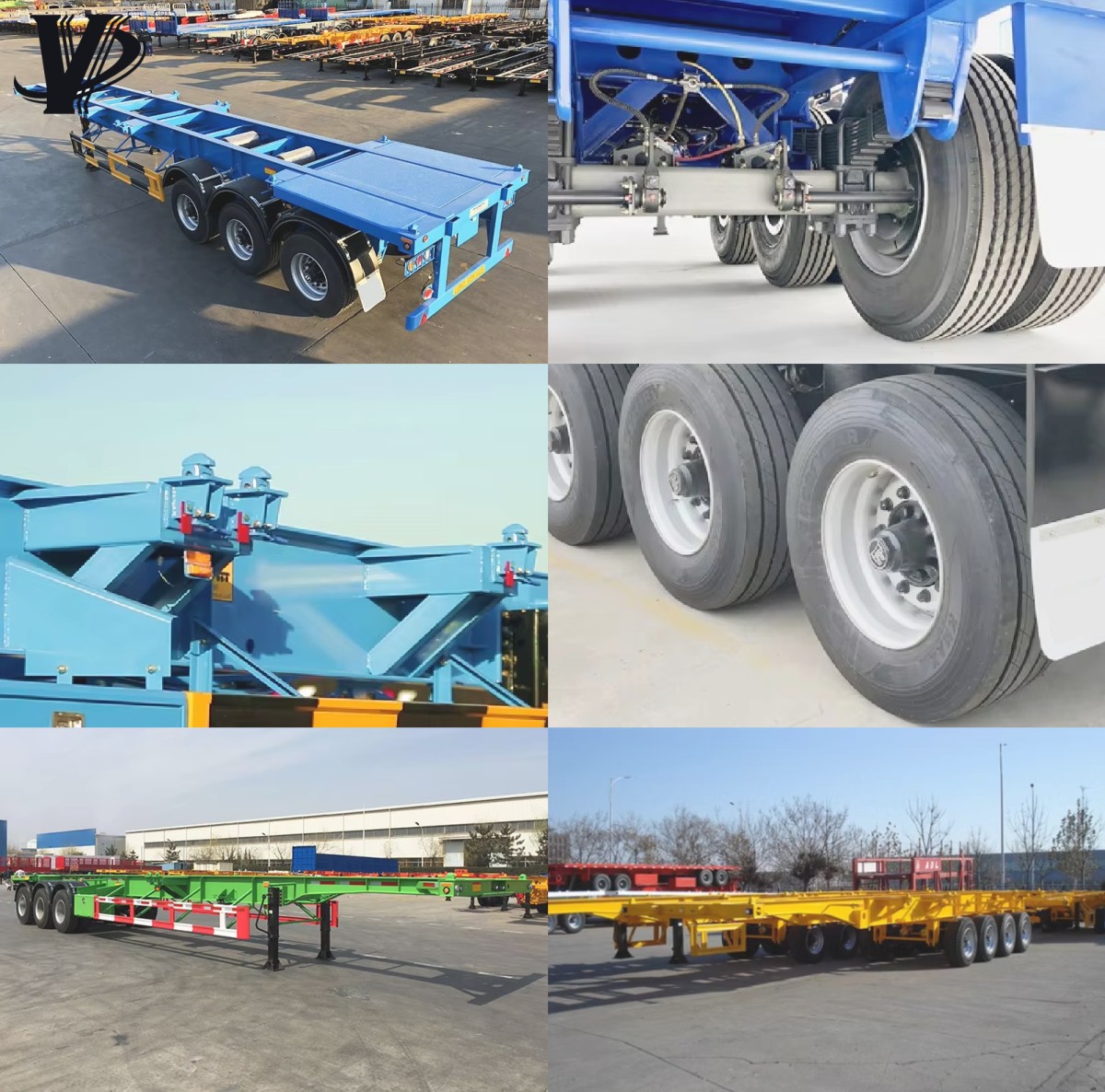

Product Detail

页面 1@1x (40)


Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
