Product Parameters

 Dimension Length Approx 13,950 mm
 Width Approx 2,480 mm(including mudguard)
 Height Approx 1,500mm @ unload
 Weight Max. Payload: Approx 60,000 kg
Steel Structure Material High strength low alloy steel Q345 and Q235 is used for welded I-beam and
 fabricated parts.
 Axle 3*13 tons Fuwa axles
 Tire 6 pcs with aluminum rim
 Suspension air suspension and the front axle is liftable
 King Pin 3.5" bolting kingpin
 Container lock 4 units ISO retractable container lock.
 Landing Gear JOST E100 landing gear
 Brake System Dual air brake system, WABCO relay valve, No ABS system.
 Brake chamber Type30/30 on the two axles.
 Electrical System 24-volt lighting system, 7-way receptacle, Chinese standard.

Product Detail

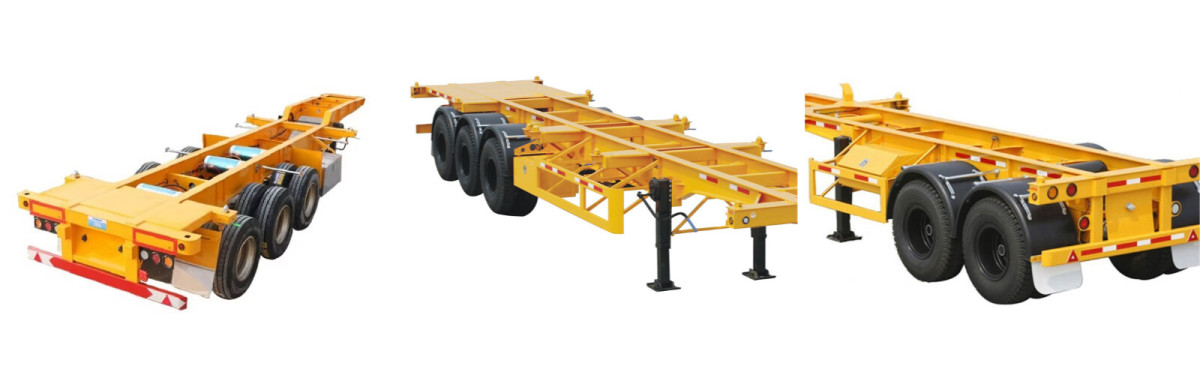

鹅颈式骨架半挂

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
