Product Parameters

TermsRear Dump semi trailer— L50Rear Dump semi trailer-L80
Loading Capacity40-60 tons60-80 tons
Axle3 axles ,BPW/FUWA axle44 axles ,BPW/FUWA axle
Tyre12 pieces, 10.00R2016 pieces, 11.00R20
Dimensions(LxWxH)9000-12000mm*2500*3600mm
Tare weight10-12 tons
Hydraulic CylinderHYVA hydraulic cylinder with one set of PTO
Rims8.5-20, 9.0-20
Suspension SystemLeaf spring Suspension/Air suspension
Brake SystemDual line pneumatic brake system with WABCO emergency relay valve
Main BeamHeight 500mm Q345 carbon steel
ChassisUpper 18mm, lower 18mm. Mid web 12mm
Kingpin2' or 3.5' interchangeable,JOST brand
Landing Gear28 Tons , Two speed manual operation
Electrical System1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness) German standard
Lights and   ReflectorsRear light, rear reflector, turn indicative light, side reflector, fog lamp,   number plate light
PaintingShot blast to SA 2.5 Standard prior to application of primer, polyurethane   top coat. Total DFT not less than 100μm;Any color will be available
Tool BoxOne tool box with a set of standard trailer tools
Spare Tyre CarrierOne piece or two pieces

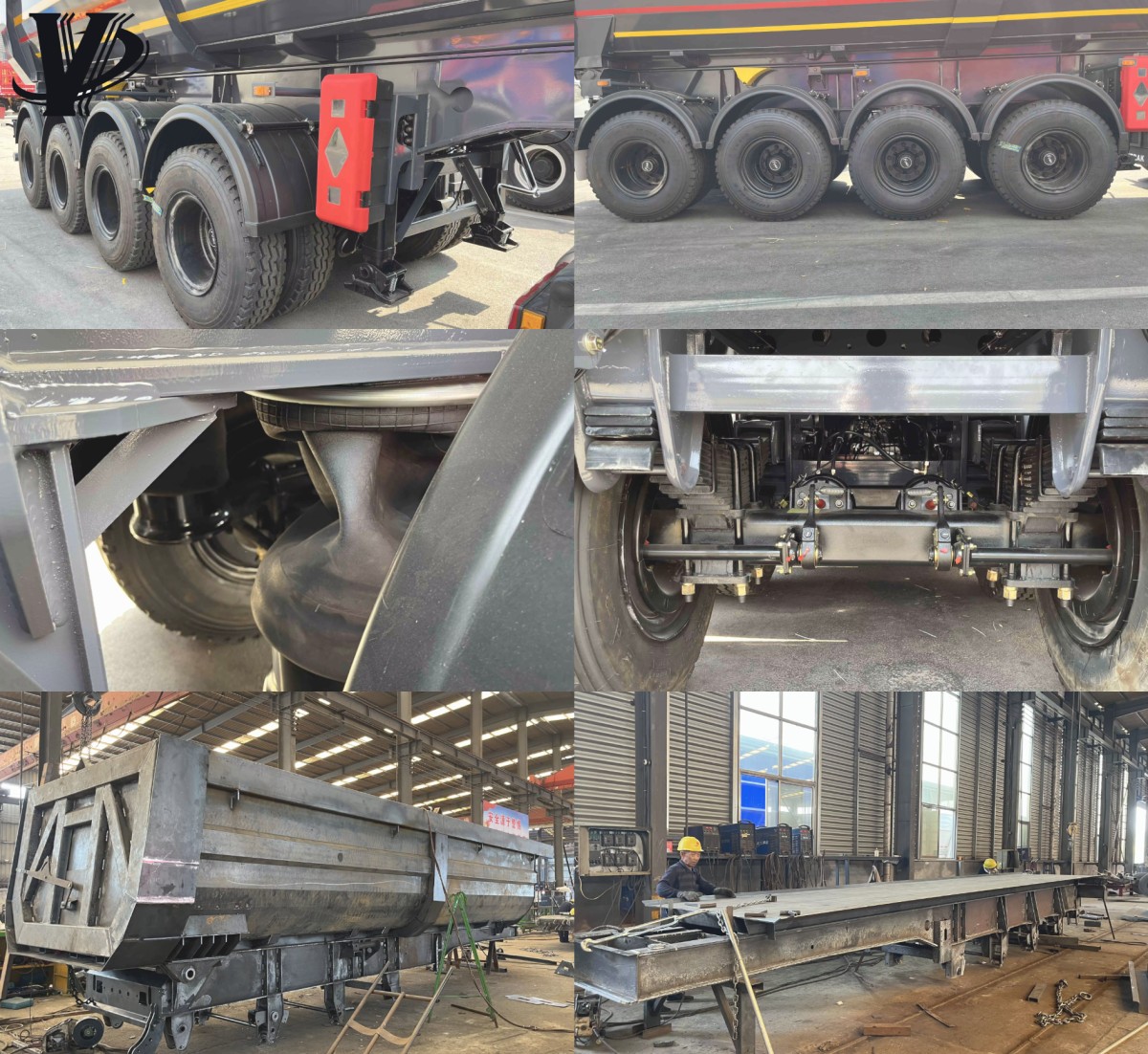

Product Detail

页面 1@1x (35)


Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
