Product Parameters


Cargo Transport Box Body Truck Semi Trailer
Dimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size
20ft2400008825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
40ft 45ft 48ft 53ft36000012
40ft 45ft 48ft 53ft47500016
Wheel Base  (mm)1310
leaf-spring Pcs10
Axle13/16/18 T
SuspensionHeavy Duty Mechanic Suspension with Leaf Springs
Main Beam MaterialQ345B manganese plates, automatic submerged arc welded
Brake SystemDual line braking system with automatic braking system/chambers
Brake Air ChamberDouble Model
Kingpin2' or 3.5' Interchangeable
Landing gear28T loading capacity with 80T static lifting capacity.
Platform4-6 mm diamond steel plate
Brake SystemDual Lines Braking System With Automatic Air Chambers
Brake Air ChamberFour double and two single chamber
Electrical System24V, 7core socket, lights according to European standards.

Upper plate14mm
Mainbeam SizeLower plate16mm

Mid Web8 mm

Height500-520mm
Tool Box1 box of standard tools
ApplicationFor animal/livestock/coal/grain bulk cargo transport
Box Height2M

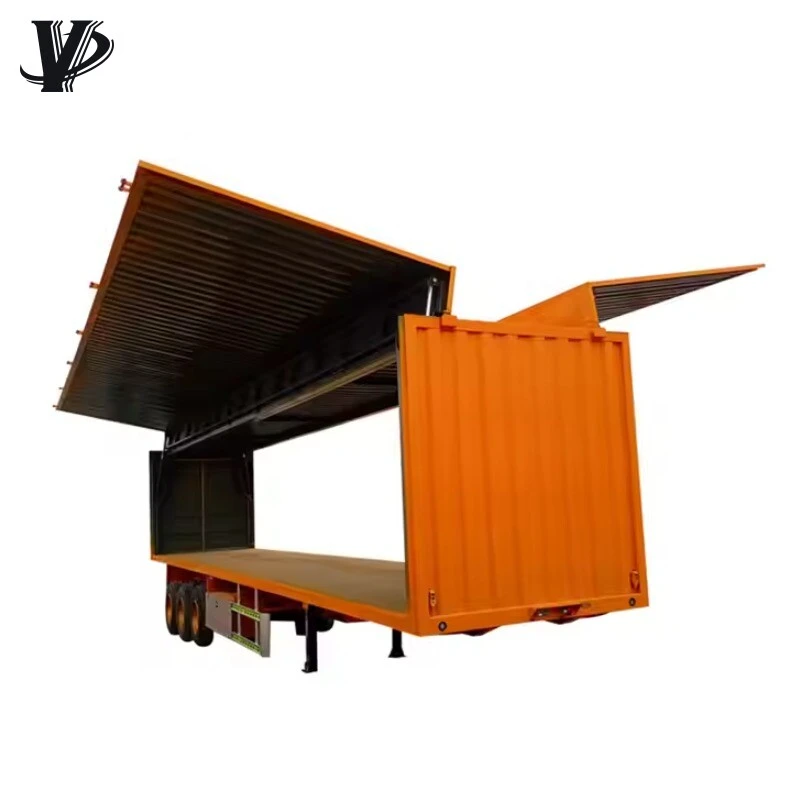

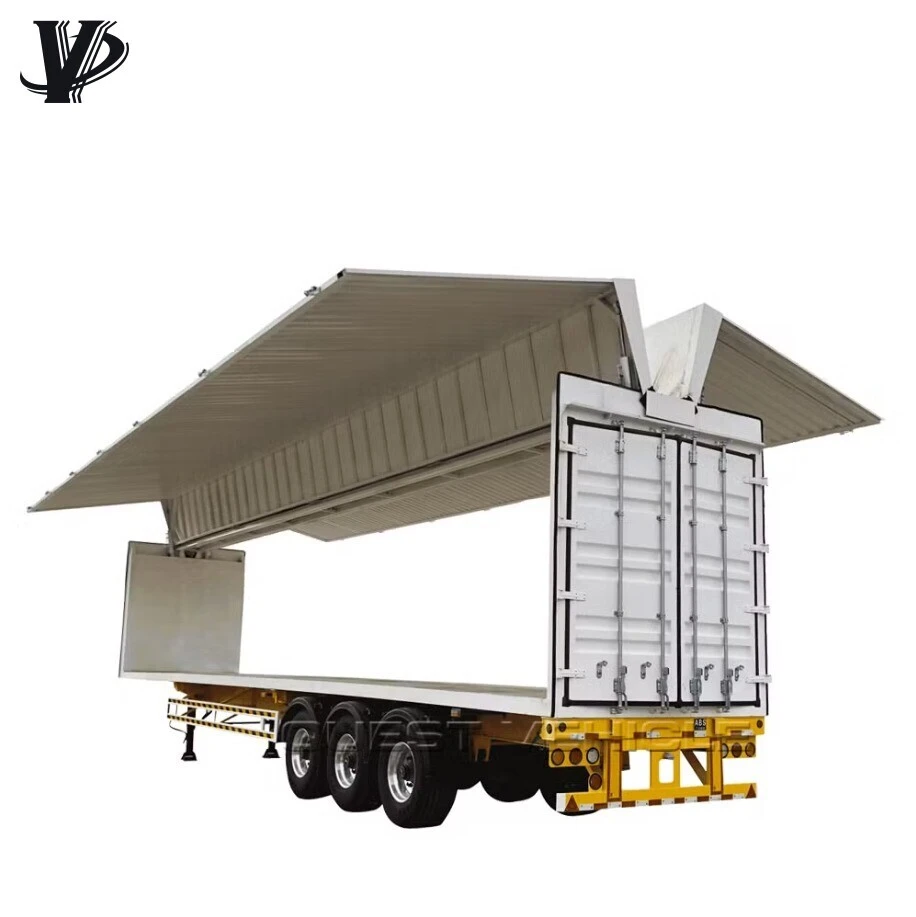

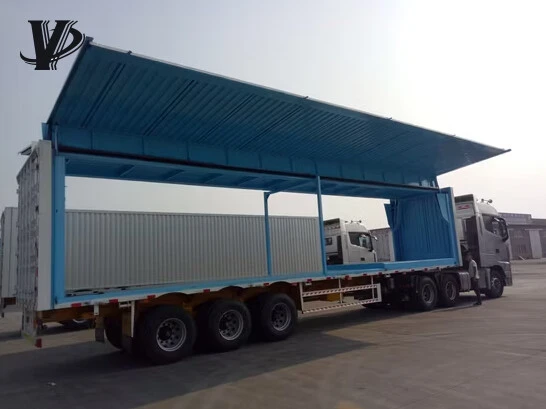

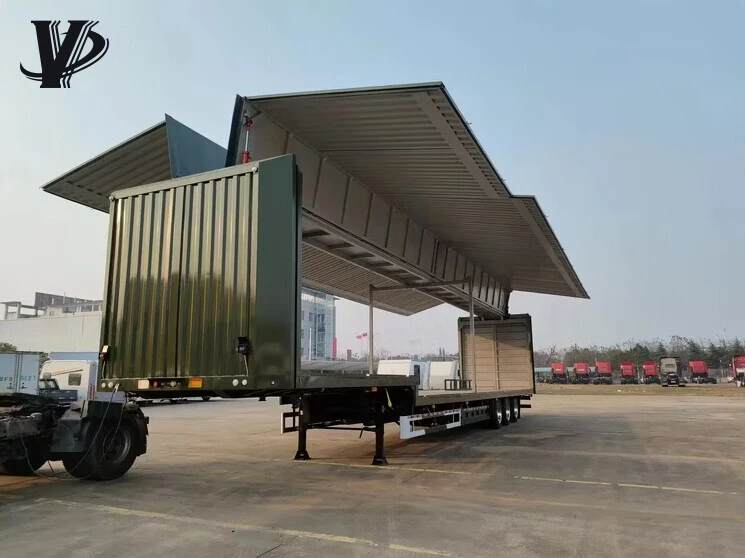

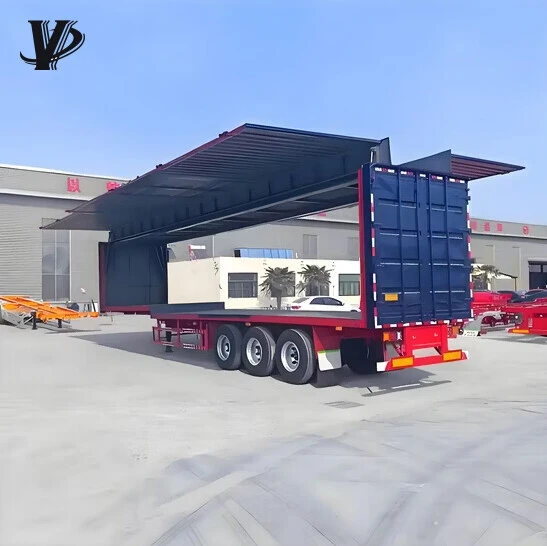

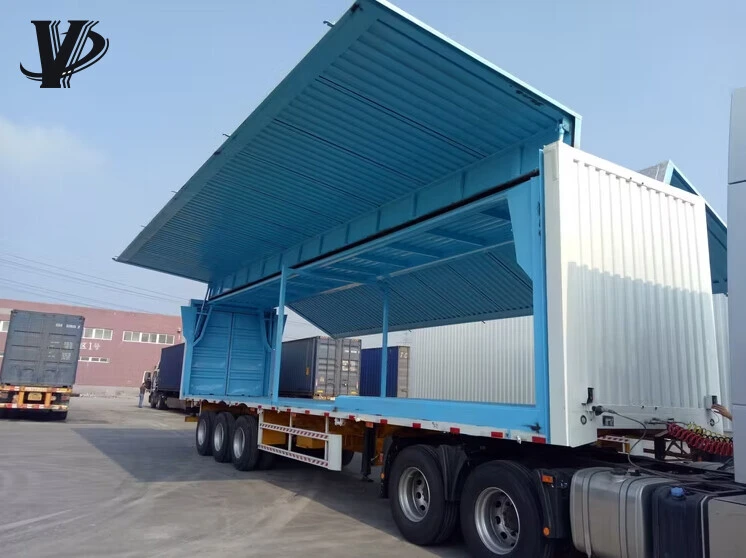

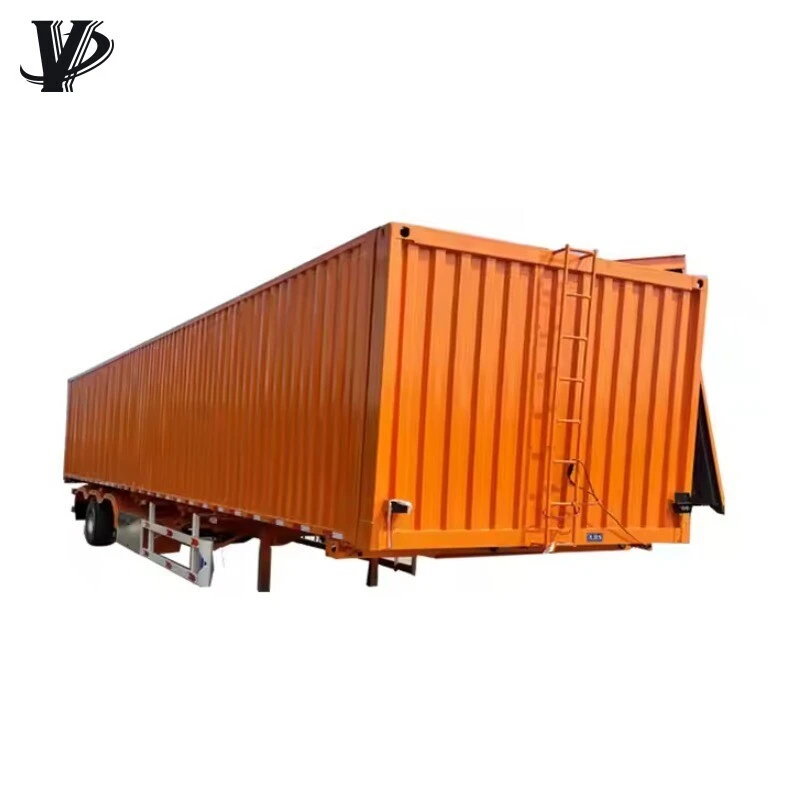

Product Detail

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
