Product Parameters

 Feature Carry containers, bulk cargo, equipments
 Dimension(L*W*H) (10800-12000)*(2800-3200)*2500mm
 Main frame Heavy duty and extra durability design; Opting for high  tensible low carbon alloy Q345B steel; I beam
 welded by  automotive arc-submerge process
 No. of axle 2
 Payload 45,000kgs
 Kingpin The world-famous JOST brand bolt-in/welded type 3.5”/2”
 Landing gear JOST brand two-speed manual operation 19”
 Tire size 11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
 Rim size 8.25*22.5、9.00*22.5、11.75*22.5
 Axle Original BPW-12T/ FUWA-13T
 Suspension Germany type with 12pcs of leafs spring/ Fuwa brand with  8pcs of leafs spring/ Airbag suspension
 Brake system Dual line with WABCO brand Re-6 emergency relay valve,  MBA brand T30/30 air chamber, 46L air tank
 Electric system One unit of 24V 7-pin ISO standard socket; with brake light,  turn light, reverse light, side light, reflector,
 fog light; one set  of 6-pin standard cable
 Container locks 12(for 1x20GP,2X20GP,1X40HQ)
 Painting S.A.2.5standard sandblasting; Two coat of anti-corrosion  prime; one coat of finish painting
 Accessory One tool box; one set of standard tool
 We can build the trailers according to customer’s design and requirement

Product Detail

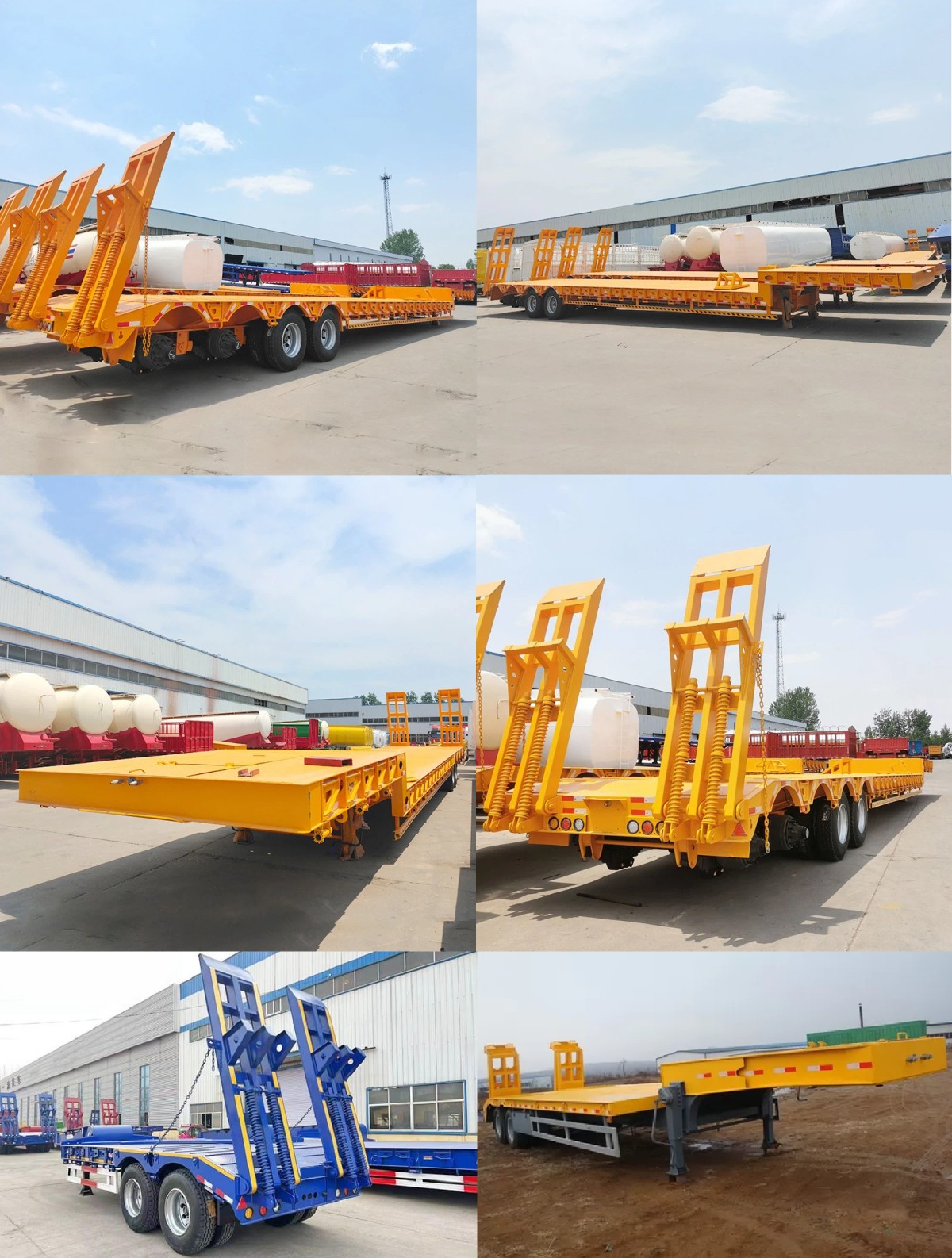

2-Axle 45T Lowbed Semi-Trailer

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
