Heavy Duty Hydraulic 6 Axles Low Bed Semi Trailer
Email：sales@sdydtrailer.com
Phone：+8619006356480
WhatsApp：+8619006356480
Contact Us

Product Parameters

Product Parameter
  Outside Dimensions (L*W*H)  L:12000-20000     W:2400-4000    H:900-1500
 Rated Load  30ton-500ton
  Tare Weight  More than 9000kgs
  Wheel   Base  8480+1310 (mm)
Running Gear
 Tires specification 12R22.5 ,11.00R20 or depends on customer
 No. of tires 8,12,16 or more than 20
 Spare tire carriers 2 or 1 including a riser.
 Axles Brand FUWA
 No. of axles 2,3 4 or more than 5
 Axle-load  13000kgs
 Wheel rim 8 units of 7.50-20 rim or 8.00
 Suspension Rigid suspension and air suspension
 Pieces of leaf-spring 10/10/10
 Brakes brand TKL brand
 Brake chamber 4 double chamber
 System Dual line braking system /ABS
Under Frame
 Departure Angle 14
 Front/Rear   Overhang 1670mm
 Main Beam material I beam ,Q345B , automatic submerged arc welded
 specification Height is 500mm,upper plate is 20mm,lower plate is 20mm,middle is 12mm
 Cross Beam materia Q235B
 Side beam 16# channel steel
 Plate form Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as
 2mm,2.5mm,3mm,4mm,5mm,6mm)
 King Pin 50# or 90#
 Landing gear Single side operation or double side operation, Static capacity 28Ton
 Accessory One tooling box with a set of standard trailer tool
Electrical
 Voltage 24V
 Receptacle 7 ways (7 wire harness)
 Lights Front corner marker lamp :red ;reflector lamp :white
 Side marker :orange
 Rear lamp :red; rear reflector :white; turn single lamp :orange
We can build the trailers according to customer’s design and requirement

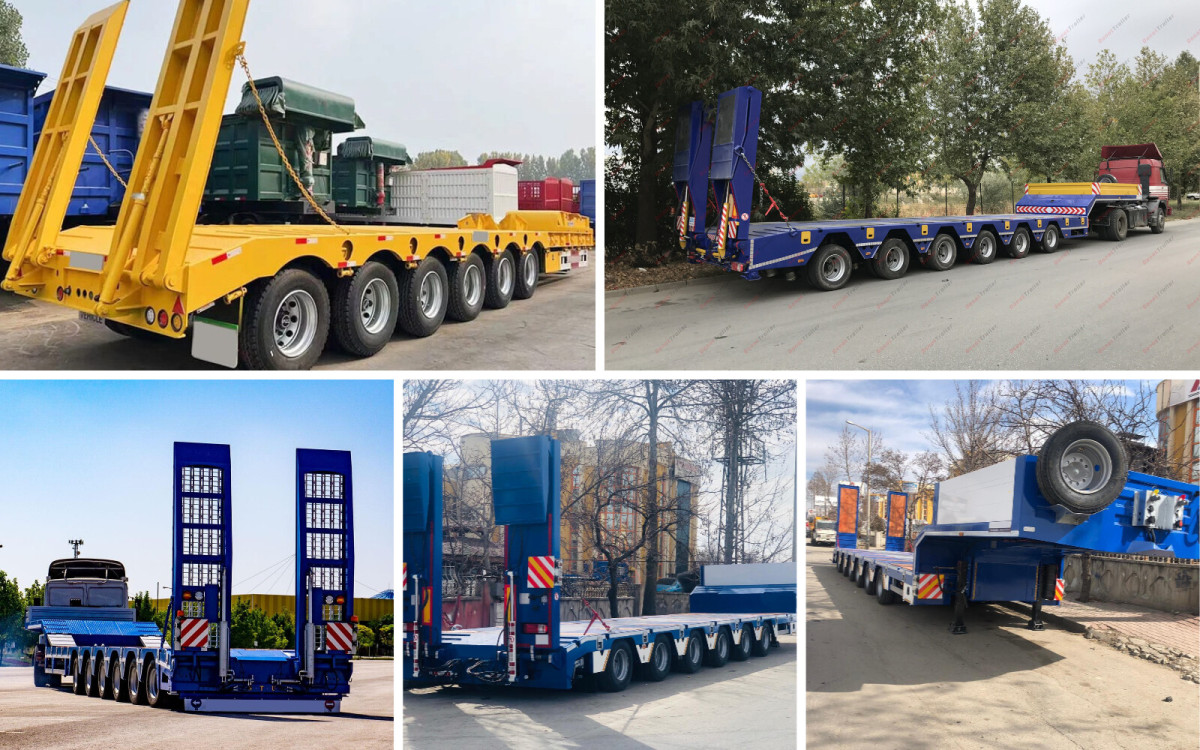

Product Detail

Heavy Duty Hydraulic 6 Axles Low Bed Semi Trailer

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
