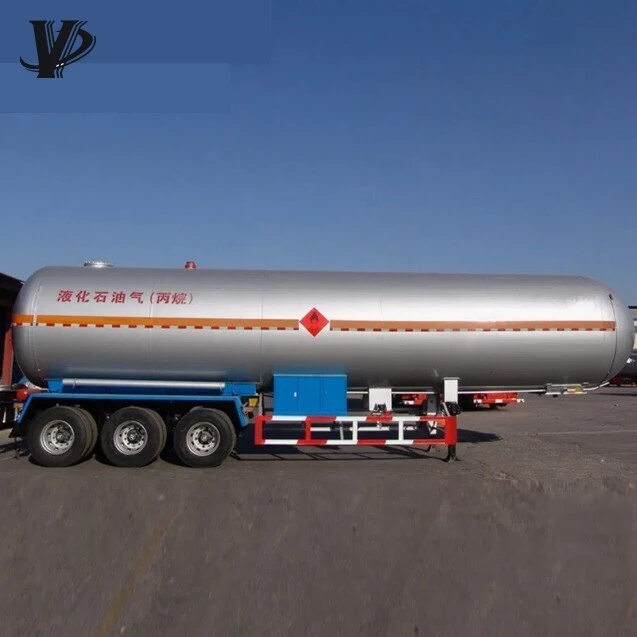

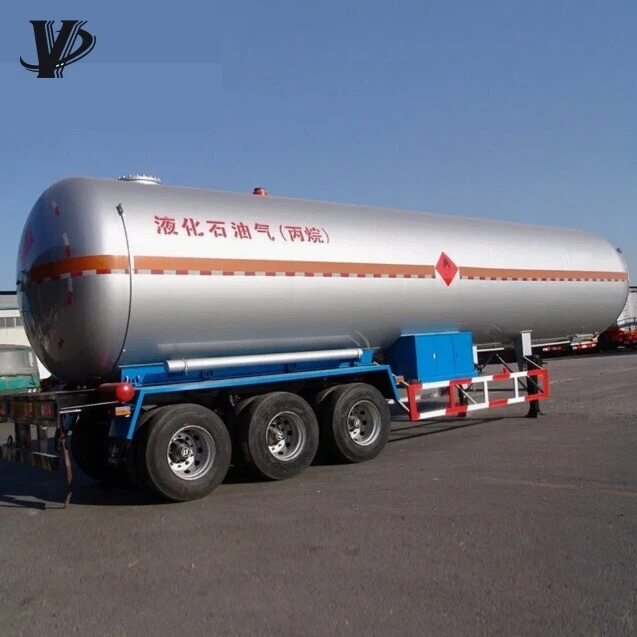

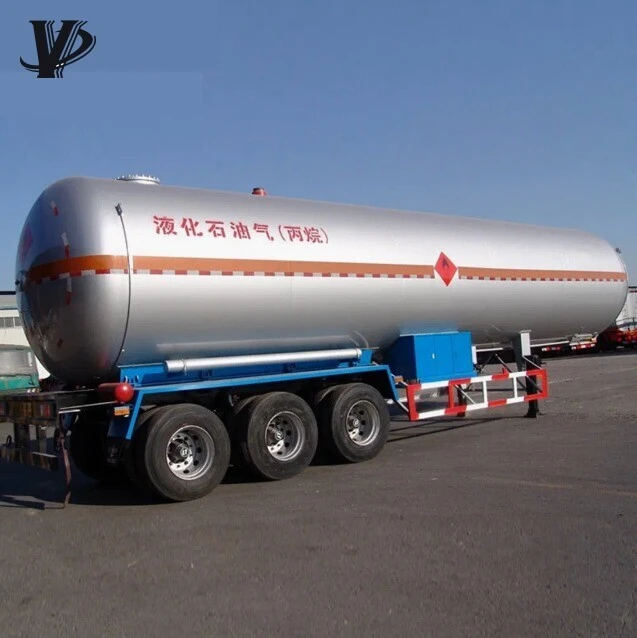

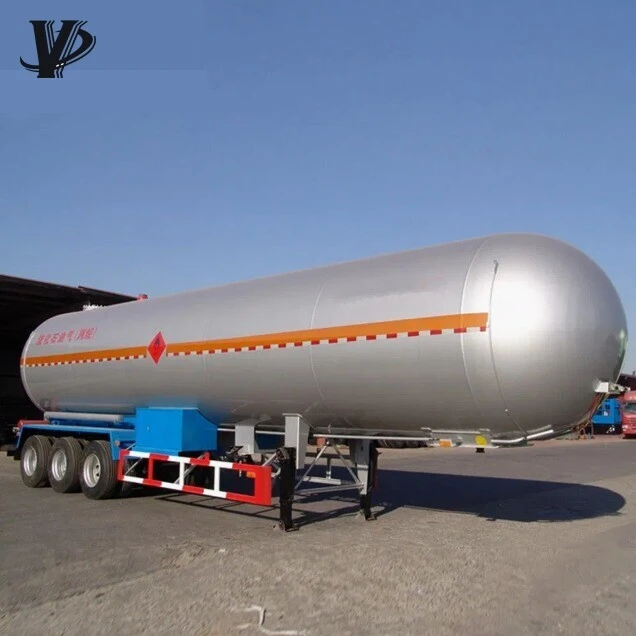

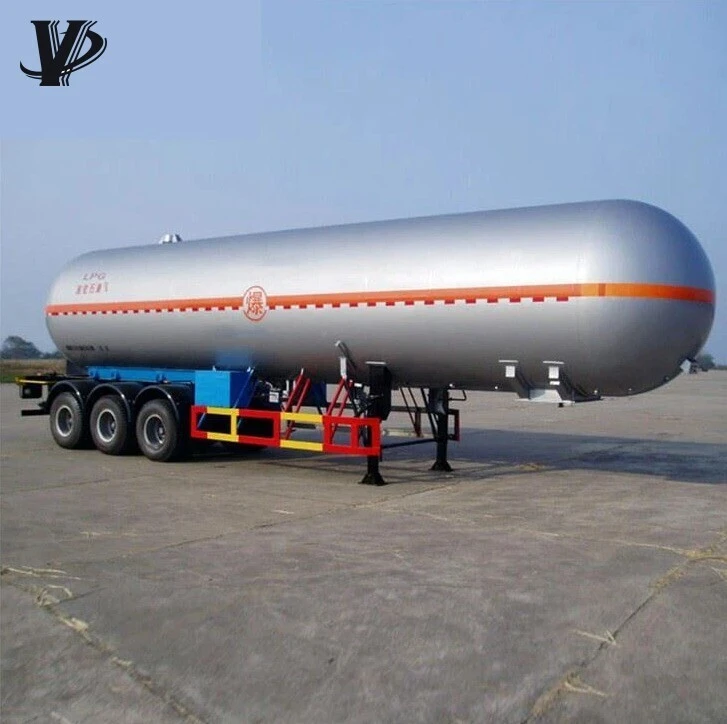

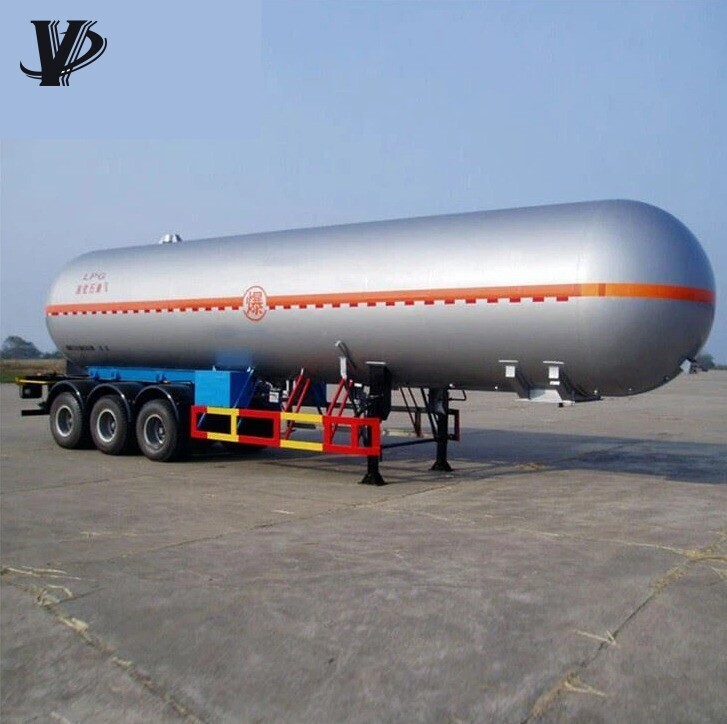

60kl Lpg Tank Trailer
Email：sales@sdydtrailer.com
Phone：+8619006356480
WhatsApp：+8619006356480
Contact Us

Product Parameters


60kl Lpg Tank Trailer
Dimension(Optional)Axle No.Rated Load (kg)Tire No.Tire Size
10000-30000liters/10-30cbm2400008825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
30000-60000liters/30-60cbm36000012
Above 60000liters/60cbm47500016
ProductsLPG, Butane, Propane
Fluid propertyflammable
Design temperature            -40°C to 50°C
Design pressure              1.61MPa
Filling weight per volume  420Kg/m3
Maximum filling weight      24486Kg
CompartmentsOne
Baffle inside the tank14-off bolted plate, 5mm
ShapeCylindrical; Ellipse head
Fire extinguisher2 With a red box
Flaw detection100% Flaw detection
Hydrostatic test2.1MPa
Manhole1; On top
Safety Valve1
Suspension systemLeaf spring 10pcs
Landing legs28Ton
7-Pin Socket24V 7-pin socket
LED LampAll kinds of lamp
Kingpin90 and 50# Bolt-atble
Small Toolbox1
Wheel carrier1
Corrosion allowance1.0mm
MagnafluxAim at welding place flaw detection can not cover
Heat treatmentOverall heat treatment in a furnace, 500°C to 560°C

Our advantages

In material procurement, the factory strictly controls the process:


1. All our suppliers conduct quality assessments every year to ensure the quality of suppliers;

2. The main pressure material adopts special material pressure equipment.

3. 100% steel ultrasonic re-inspection;

4. Product pipeline operation, improve construction efficiency, and ensure effective control of self-inspection and inspection points at each step;

5. The main welding of the product adopts internal and external automatic welding, forming, and welding to ensure internal quality;

6. All pressure parts are of full fusion welding structure to ensure welding strength;

7. All LPG tanks undergo an integral stress relief heat treatment.



Product Detail

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
