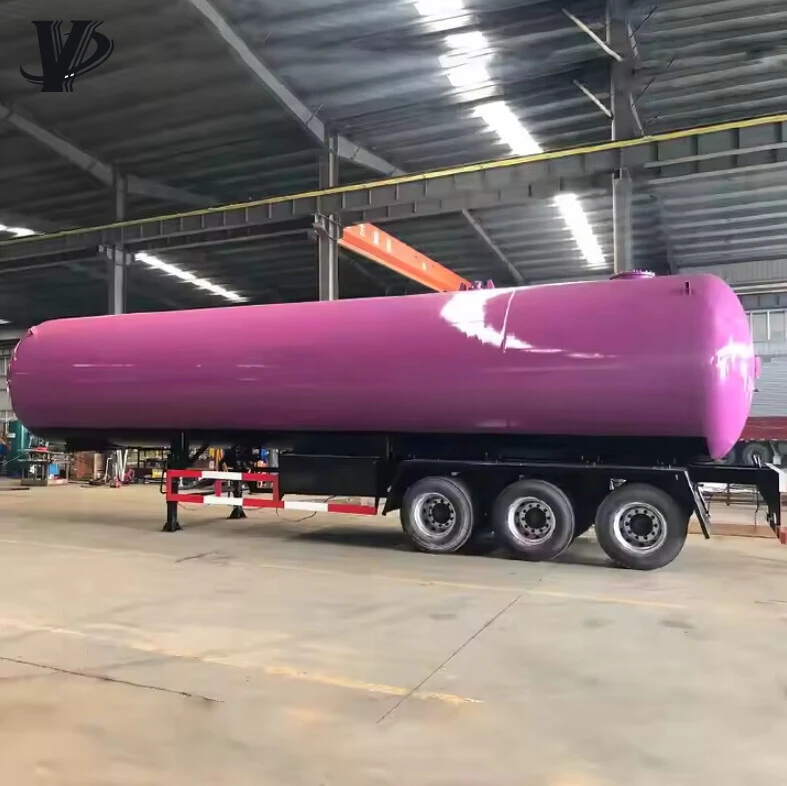

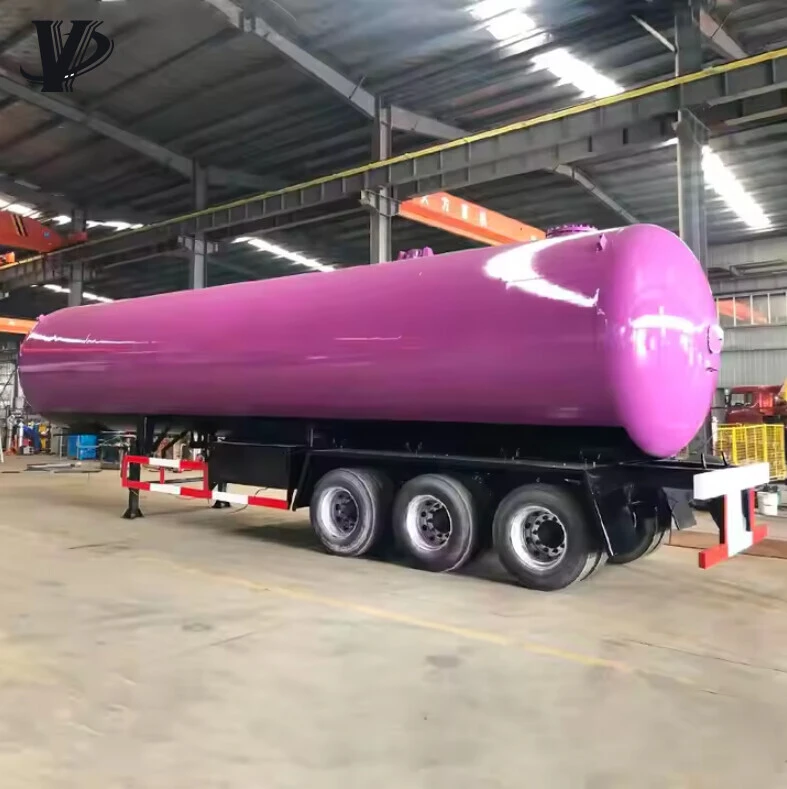

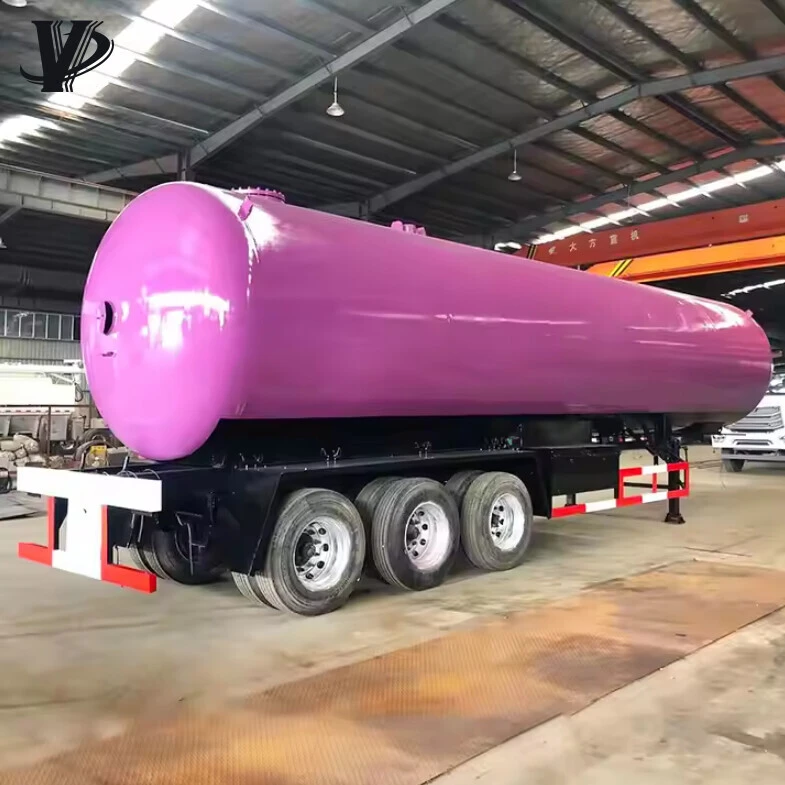

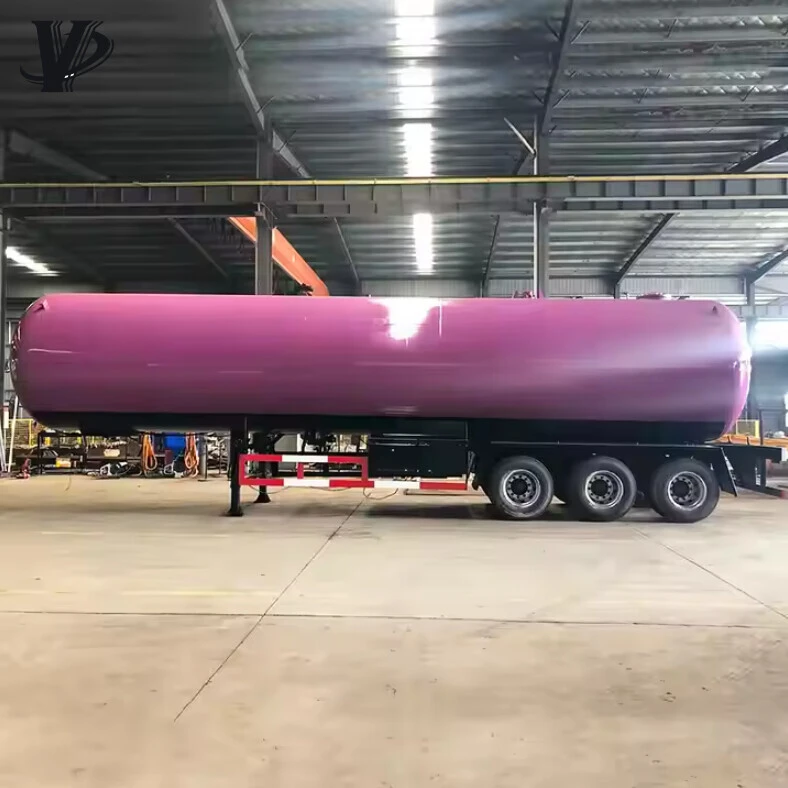

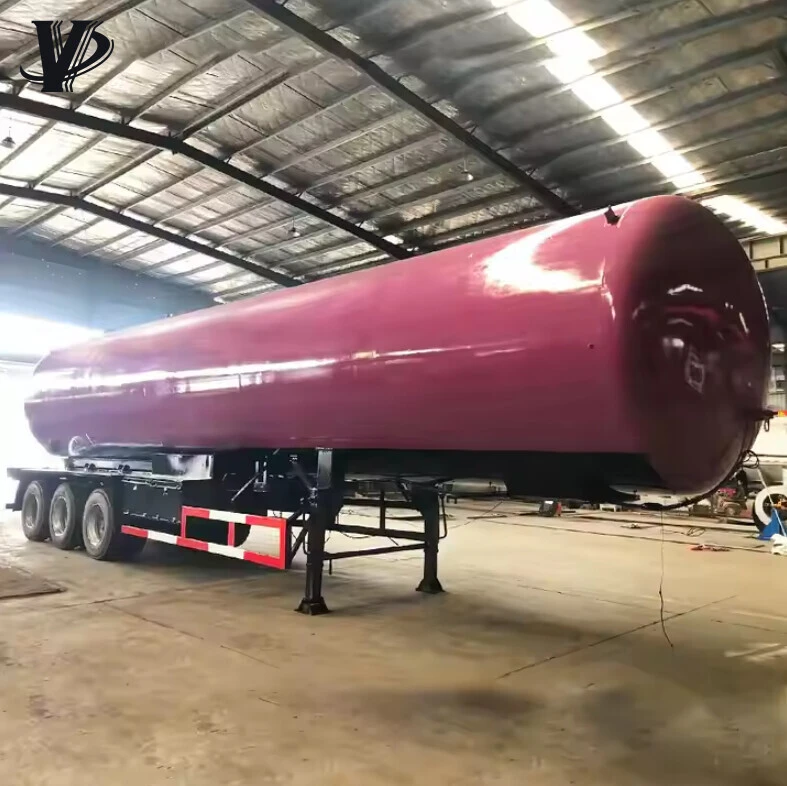

LPG Gas Tank Semi Trailer
Email：sales@sdydtrailer.com
Phone：+8619006356480
WhatsApp：+8619006356480
Contact Us

Product Parameters


Dimensions(L*W*H)12982*2500*3990(mm)
Payload23.6T
Tanker size(long*diameter)12796*2478mm
Fluid propertyflammable
Design temperature-40°C to 50°C
Design pressure1.77MPa
Work pressure1.61MPa
Corrosion allowance1.0mm
Filling weight per volume420Kg/m3
Baffle inside the tank14-off Aluminum bolted plate , thickness is 6mm
ShapeCylindrical ; Ellipse head
Heat treatmentOverall heat treatment in a furnace , 500°C to 560°C
Flaw detection100% Flaw detection


LPG tank trailer is a special vehicle for road transportation of liquefied gas. Our LPG tank trailer provide customized services. The tank body is made of high-strength carbon steel material,

welded by an automatic submerged arc process, and undergoes strict air tightness tests before leaving the factory to ensure the tightness of the tank body. Our company has passed ISO

quality system certification, to provide you with the most sincere and reliable service.


The liquefied gas tanker is welded with 16 manganese high-strength steel plates, and after the welding is completed, the places where the stress is concentrated and the welding seam are

strictly checked, and the hydraulic test is carried out to check the tightness of the welding. During the test, the tank shall not have significant deformation, uneven expansion and leakage.

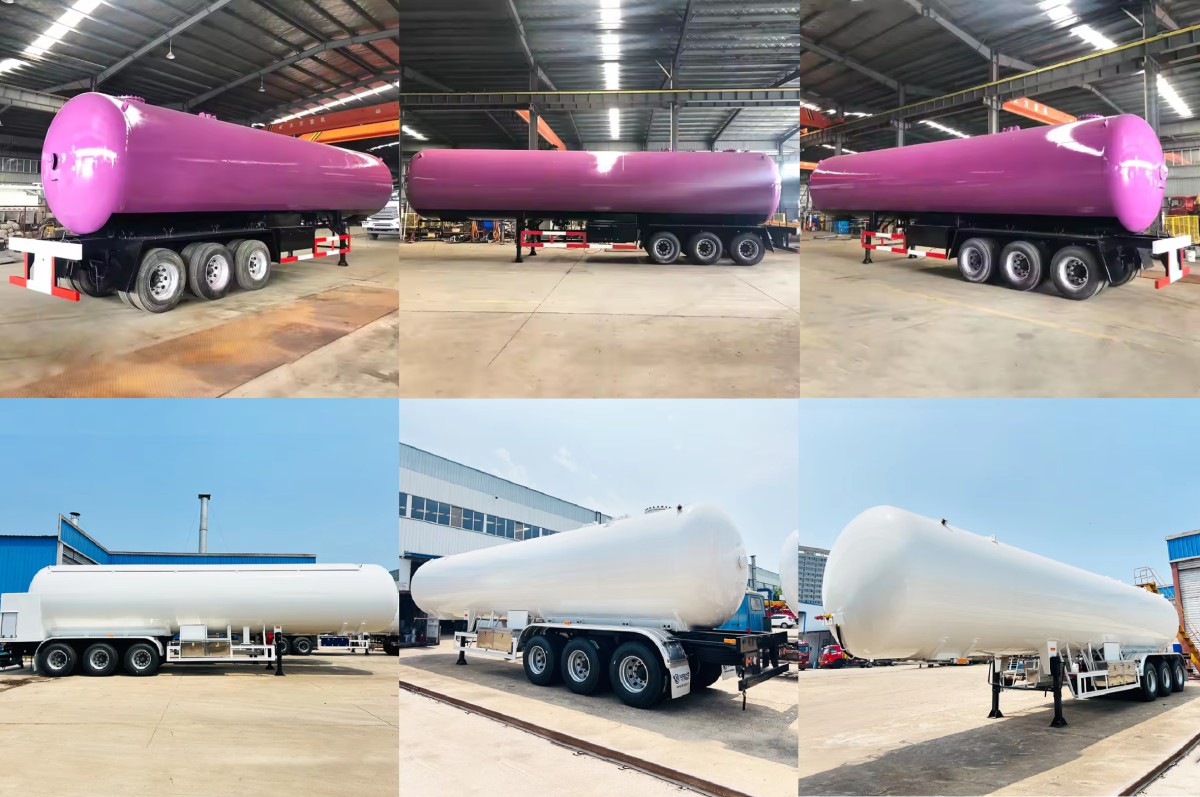

Product Detail

Factory Showcase

  • 33
  • 22
  • 11
  • 4
  • 5
  • 2

Customer visit

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8

FAQ

Q1. Are you a factory or a trading company?
A: We are not just a factory, we also have a sales team, our technical team, and an after-sales workshop to help buyers decide which products are their suitable choices, all your inquiries will be replied to within 24 hours.



Q2. Can you send me all your catalogs and price lists?
A: Please tell me the items, sizes, and packages you are interested in so that we can send you the price list you need for your reference.


Q3. What is your delivery time?
A: Generally speaking, delivery time is 10 to 15 days after receiving the payment. The production department will check large quantities. We will deliver the goods as soon as possible while ensuring quality.


Q4. What documents can you provide?
A: We usually provide customers with a commercial invoice, price list, packing list, certificate of origin, quality/quantity certificate, beneficiary certificate, bill of lading, etc., according to their requirements.
